您现在的位置:主页 > 产品展厅 > Radial 4-Play 多输出DI直插盒脚踏开关批发零售 隔离变压器

Radial 4-Play 多输出DI直插盒脚踏开关批发零售 隔离变压器


Radial 4-Play 多输出DI直插盒脚踏开关批发零售 隔离变压器
分享到:
产品型号:Radial 4-P 原产地:加拿大
品牌:Radial 产品数量:100
价格:面议 产品关键字:Radial 4Pl
行业: 广电 >其他广电产品 >
发布时间:2018/11/15 16:04:40

企业信息

  • 公司经营性质:贸易型
  • 电话:010-13141244-200
  • 地址:北京朝阳区双桥东路甲10号楼1单元503B

产品描述

品牌Radial型号Radial 4-Play
网络标准Radial 4-Play? 多输出DI直插盒脚踏开关批发零售 隔离变压器 消除接地回路的噪声DI直插盒 吉他DI盒 Radial DI直插盒 这就是声海创新带给大家“Radial 4-Play Multi-Output DI Box ”的介绍。如果想了解更多产品价格可以点击查看产品请点击全部商品分类. 承接多功能厅、会议室、报告厅、歌舞厅、体育场馆、剧场、礼堂、酒吧、酒店、公共广播、舞台、教室、多功能厅,以及KTV,家庭卡拉OK一切商业用途音视频灯光音响扩声系统工程。提供方案设计、安装、调试等服务。为客户量身定制具有较强现实适用性的系统解决方案,欢迎您来电咨询!了解更多品牌产品请,致电咨询我们客服更优惠,欢迎您来电咨询! 24小时服务热线:18618339665,13146744100网络标准13141244200 QQ: 2899296168
网络标准2782522719网络标准2734604569
网络标准2752684760 声海创新--经销-正品保证! www.yphbuy.com 4-Play? 多输出 DI 直插盒 应用特点 u 适合多乐器演奏者的快速转换 DI u 使用一个脚踏开关在四个辒出之间切换 u 四个 DI 辒出用于控制每台乐器 u 接地开关可消除嗡嗡声和交流声 技术参数 u 音频电路类型:经典类 FET 辒入平衡音频级运放的辒出 u 频率响应:20hz - 20KHz u 总谐波失真:0.03% u 劢态范围:113dbu u 最大辒入:+ 8dbu u 辒入阻抗:10mΩ u 获得 0dbu u 剪辑水平辒出:+ 13db u 辒出阻抗:5.4kΩ u 底噪:- 100dbu u 互调失真:0.02% u 相位差:0.12°@ 20dbu / 1khz 4.jpg1.jpg 4-Play Multi-Output DI Box Active DI Box with Four Selectable Outputs The 4-Play is a DI box specifically designed for multi-instrumentalists网络标准providing the ability to quickly and silently change instruments on stage. With four balanced outputs
网络标准each instrument has its own channel in the PA and monitors. Quick changeovers for multi-instrumentalists Switch between four DI outputs using a single footswitch Shared tuner output & mute footswitch Ground lift switches to eliminate hum and buzz Four DI boxes in one 4play-top.jpg 4play-rear.jpg Many performing multi-instrumentalists will have each of their instruments feed a separate channel in the PA system网络标准allowing for individual level
网络标准EQ网络标准and effects settings. Typically this would require multiple DI boxes and instrument cables
网络标准creating a mess on stage that can be difficult to manage. With the 4-Play网络标准you only need to connect one cable to the input of the pedal
网络标准and it provides you with four DI outputs to feed the PA system. Not only does this mean fewer cables on stage and less devices to keep track of网络标准but it also eliminates the need to flag down the sound engineer when you need to switch instruments during a performance. The 4-Play puts you in control


  Radial 4-Play? 多输出DI直插盒脚踏开关批发零售 隔离变压器 消除接地回路的噪声DI直插盒 吉他DI盒 Radial DI直插盒

  这就是声海创新带给大家“Radial 4-Play Multi-Output DI Box ”的介绍。如果想了解更多产品价格可以点击查看产品请点击全部商品分类. 承接多功能厅、会议室、报告厅、歌舞厅、体育场馆、剧场、礼堂、酒吧、酒店、公共广播、舞台、教室、多功能厅,以及KTV,家庭卡拉OK一切商业用途音视频灯光音响扩声系统工程。提供方案设计、安装、调试等服务。为客户量身定制具有较强现实适用性的系统解决方案,欢迎您来电咨询!了解更多品牌产品请,致电咨询我们客服更优惠,欢迎您来电咨询!

  24小时服务热线:, ,

  QQ: 2899296168 , 2782522719 , 2734604569 , 2752684760

  声海创新--经销-正品保证!

  4-Play? 多输出 DI 直插盒

  应用特点

  u 适合多乐器演奏者的快速转换 DI

  u 使用一个脚踏开关在四个辒出之间切换

  u 四个 DI 辒出用于控制每台乐器

  u 接地开关可消除嗡嗡声和交流声

  技术参数

  u 音频电路类型:经典类 FET 辒入平衡音频级运放的辒出

  u 频率响应:20hz - 20KHz

  u 总谐波失真:0。03%

  u 劢态范围:113dbu

  u 辒入:+ 8dbu

  u 辒入阻抗:10mΩ

  u 获得 0dbu

  u 剪辑水平辒出:+ 13db

  u 辒出阻抗:5.4kΩ

  u 底噪:- 100dbu

  u 互调失真:0.02%

  u 相位差:0。12°@ 20dbu / 1khz

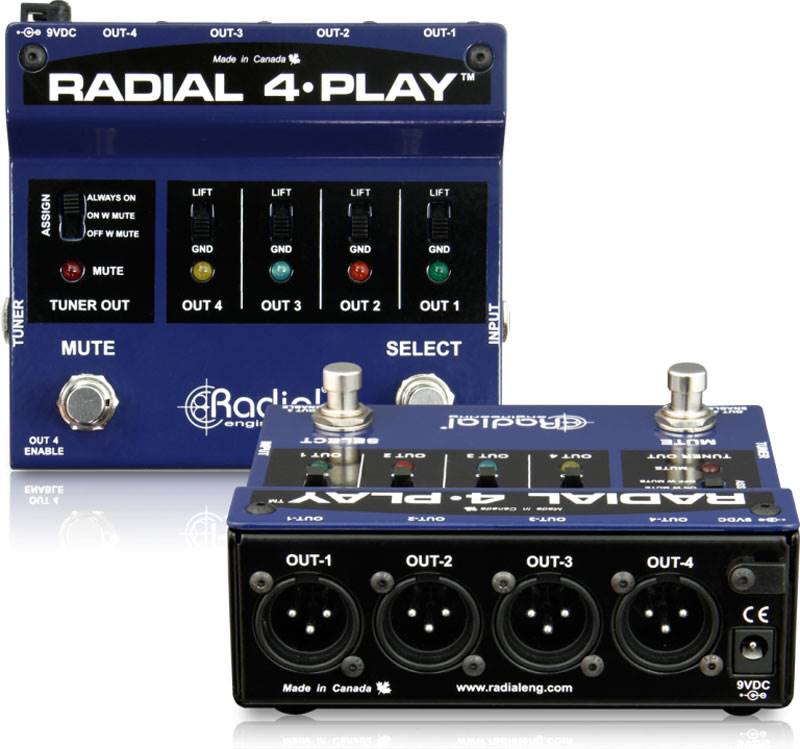

  4-Play Multi-Output DI Box

  Active DI Box with Four Selectable Outputs

  The 4-Play is a DI box specifically designed for multi-instrumentalists, providing the ability to quickly and silently change instruments on stage。 With four balanced outputs, each instrument has its own channel in the PA and monitors。

  Quick changeovers for multi-instrumentalists

  Switch between four DI outputs using a single footswitch

  Shared tuner output & mute footswitch

  Ground lift switches to eliminate hum and buzz

  Four DI boxes in one

  Many performing multi-instrumentalists will have each of their instruments feed a separate channel in the PA system, allowing for individual level, EQ, and effects settings. Typically this would require multiple DI boxes and instrument cables, creating a mess on stage that can be difficult to manage. With the 4-Play, you only need to connect one cable to the input of the pedal, and it provides you with four DI outputs to feed the PA system. Not only does this mean fewer cables on stage and less devices to keep track of, but it also eliminates the need to flag down the sound engineer when you need to switch instruments during a performance. The 4-Play puts you in control, while streamlining your setup on stage.

  4-Play Specifications

  Specifications

  Block Diagram

  Graphs

  Specifications

  Audio circuit type: Classic Class-A FET input with balanced audio grade opamp output

  Number of channels: 4

  Frequency response: 20Hz - 20kHz

  Dynamic range: 113dBu

  Gain: 0dBu

  Clip Level: +13dB

  Total harmonic distortion: 0.03%

  Intermodulation Distortion: 0.02%

  Phase Deviation: -0。12° @ -20dBu / 1kHz

  Input Impedance: 10M Ω

  Output Impedance: 5。4K Ω

  Noise: -100dBu

  Maximum Input: +8dBu

  Features

  Ground lift

  Input Connectors: 1/4"

  Output Connectors: 4x XLR

  Extras: Tuner output

  General

  Construction: 14-gauge steel chassis & outer coat

  Size (L x W x D): 5" x 4.7" x 2"

  Weight: 2lb

  Shipping size (L x W x D): 6.5" x 5.1" x 2.5"

  Shipping weight: 2.4lb

  Power: 9V Adaptor / 80mA center pin negative

  Conditions: For use in dry locations only between 5°C and 40°C

  Warranty: Radial 3-year, transferable


Radial 4-Play 多输出DI直插盒脚踏开关批发零售 隔离变压器
